Description

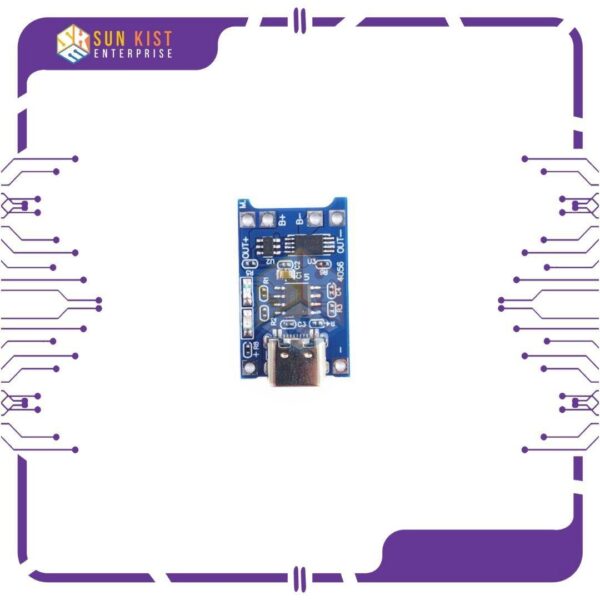

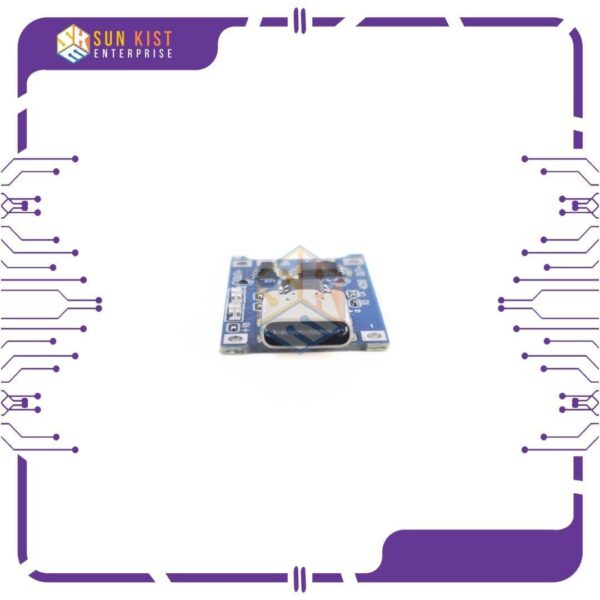

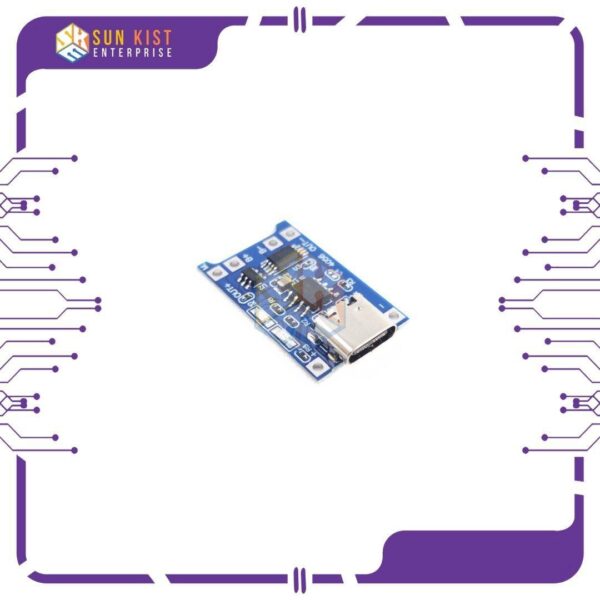

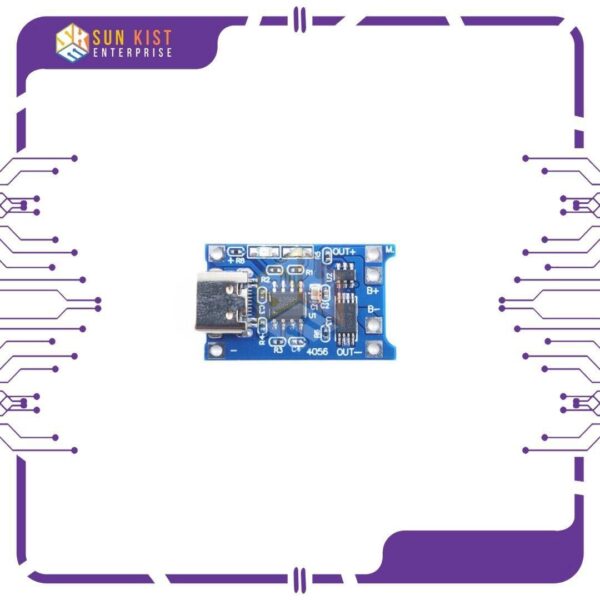

The TP4056 is a commonly used lithium-ion battery charging module with built-in protection features. When you mention “Type C with Protection,” it likely refers to a TP4056 module designed to charge lithium-ion batteries and includes a Type-C USB connector for power input, along with built-in protection circuits. Here are the key features associated with a TP4056 Type C module with protection:
1. **Lithium-Ion Battery Charging:**
– The TP4056 module is designed for charging single-cell lithium-ion or lithium polymer batteries.
2. **Type-C USB Connector:**
– The module includes a Type-C USB connector for the input power source. This allows for easy and reversible insertion of the USB cable.
3. **Microcontroller Controlled:**
– The charging process is typically controlled by a microcontroller embedded within the TP4056 module.
4. **Charging Status LEDs:**
– The module often features LED indicators to display the charging status, such as power-on, charging, and fully charged.
5. **Protection Features:**
– Overcharge Protection: Prevents the battery from being charged beyond a safe voltage.
– Over-Discharge Protection: Prevents the battery from being discharged below a safe voltage.
– Overcurrent Protection: Safeguards against excessive current during charging.
– Short Circuit Protection: Protects against short circuits in the charging circuit.
– Temperature Protection: Monitors and controls the charging process to prevent overheating.
6. **Current Regulation:**
– The module regulates the charging current to ensure safe and controlled charging of the lithium-ion battery.
7. **Input and Output Voltage Range:**
– The module is designed to work within specific input and output voltage ranges.
8. **Compact Design:**
– TP4056 modules are often compact and suitable for a variety of portable electronic devices or DIY projects.
9. **Automatic Recharge:**
– In some cases, the module may automatically restart the charging process if the battery voltage drops below a certain threshold.
10. **Compatibility:**
– The Type-C USB connector makes the module compatible with modern devices and charging cables that use USB Type-C.
When using a TP4056 module, it is important to adhere to the specified voltage and current limits, and to connect the battery with the correct polarity. Additionally, refer to the datasheet or documentation provided by the manufacturer for specific details and guidelines related to the module you are using.
